    18V Drill Driver LXT®,

18V Drill Driver LXT®,

DDF491
65 Nm, 0 – 1 900 min⁻¹

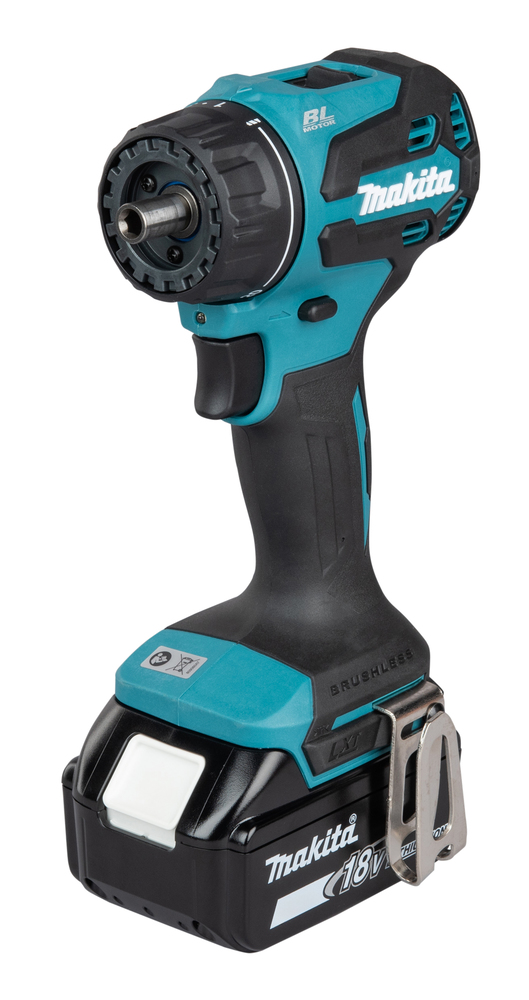

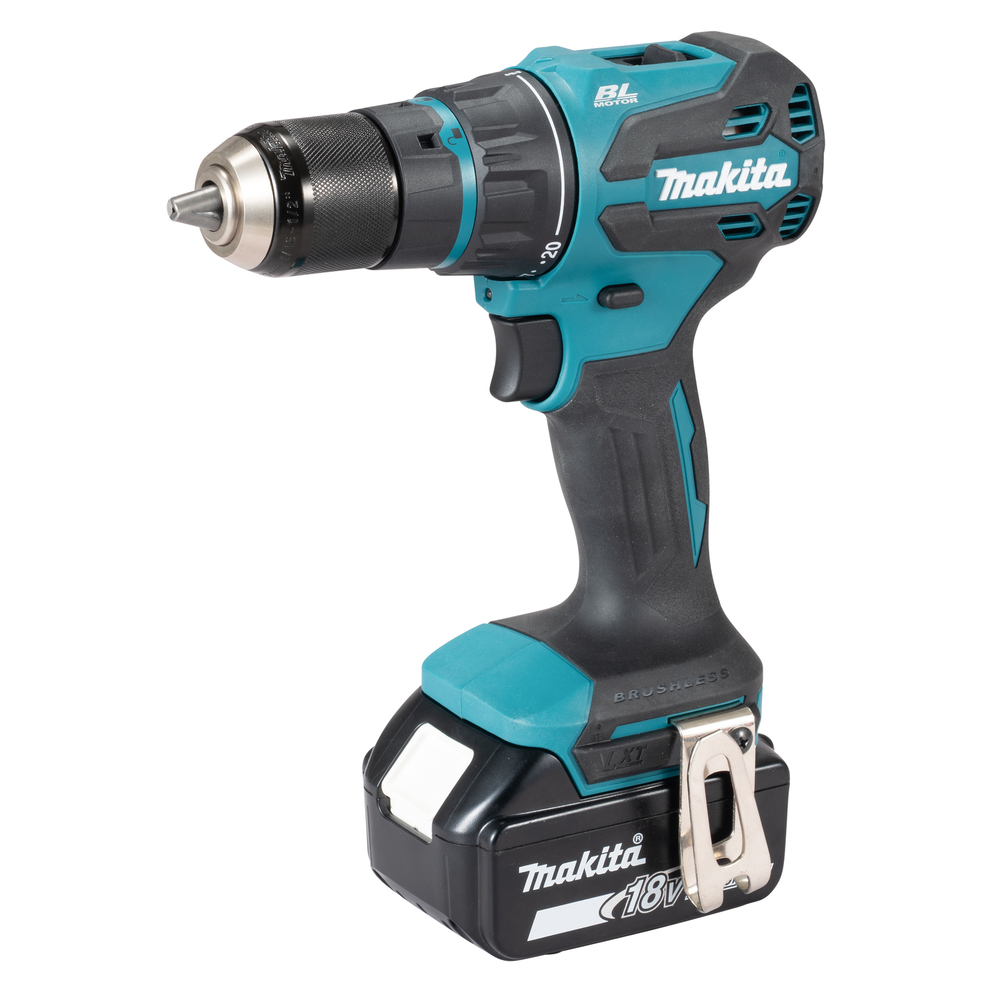

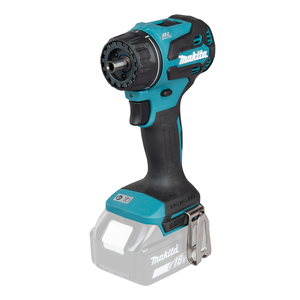

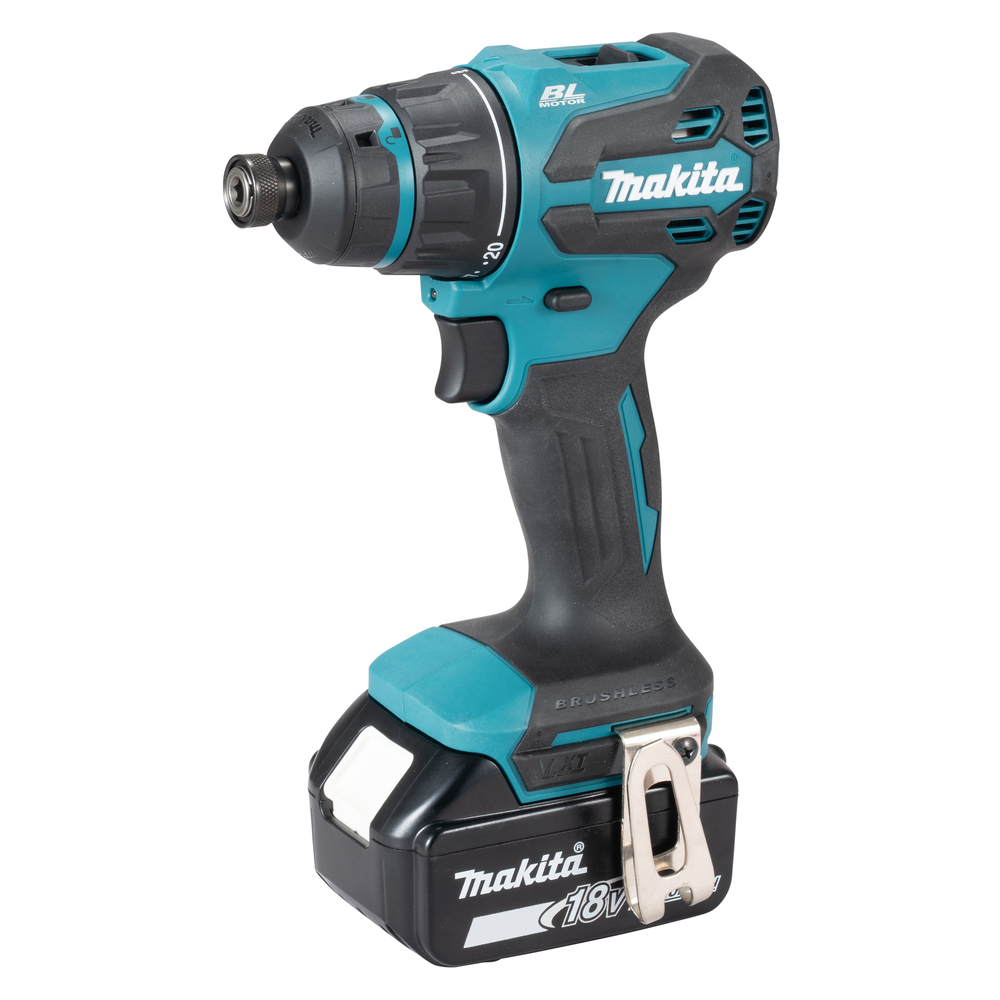

DDF491 is drill driver powered by an 18V LXT Li-Ion battery.

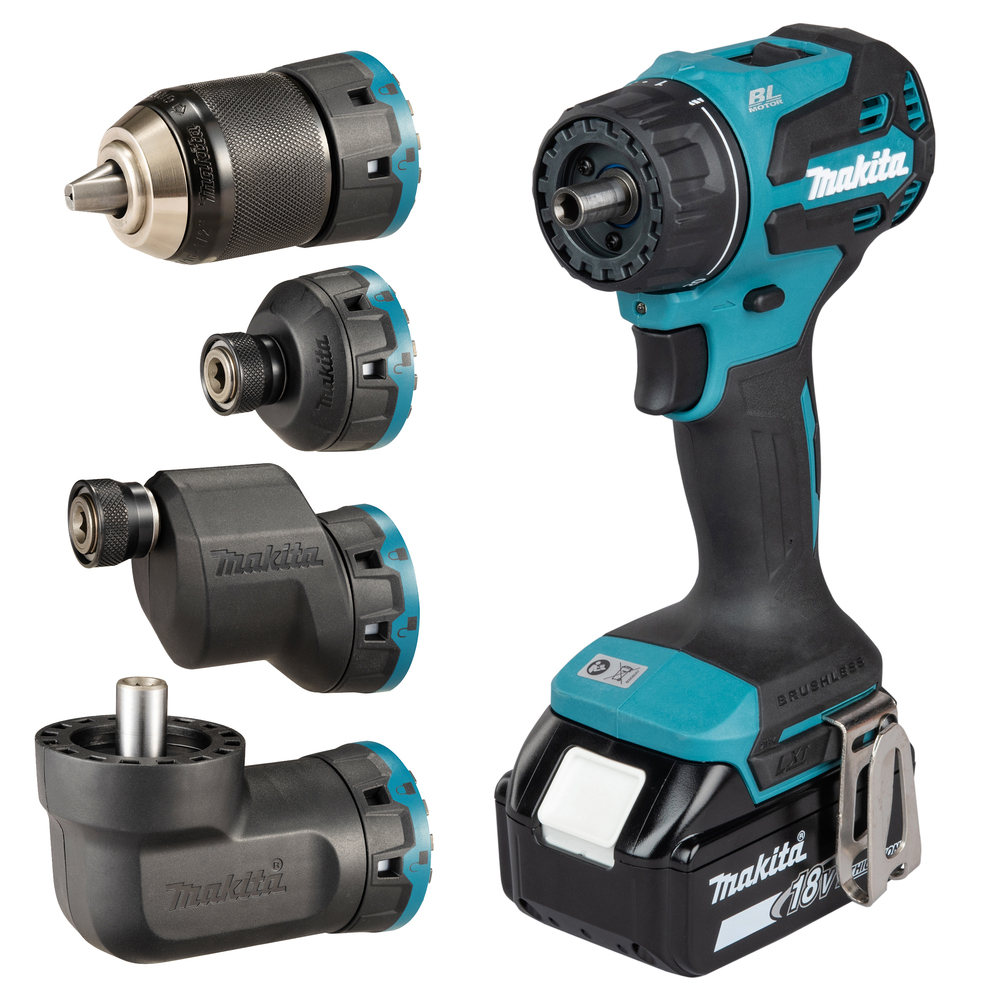

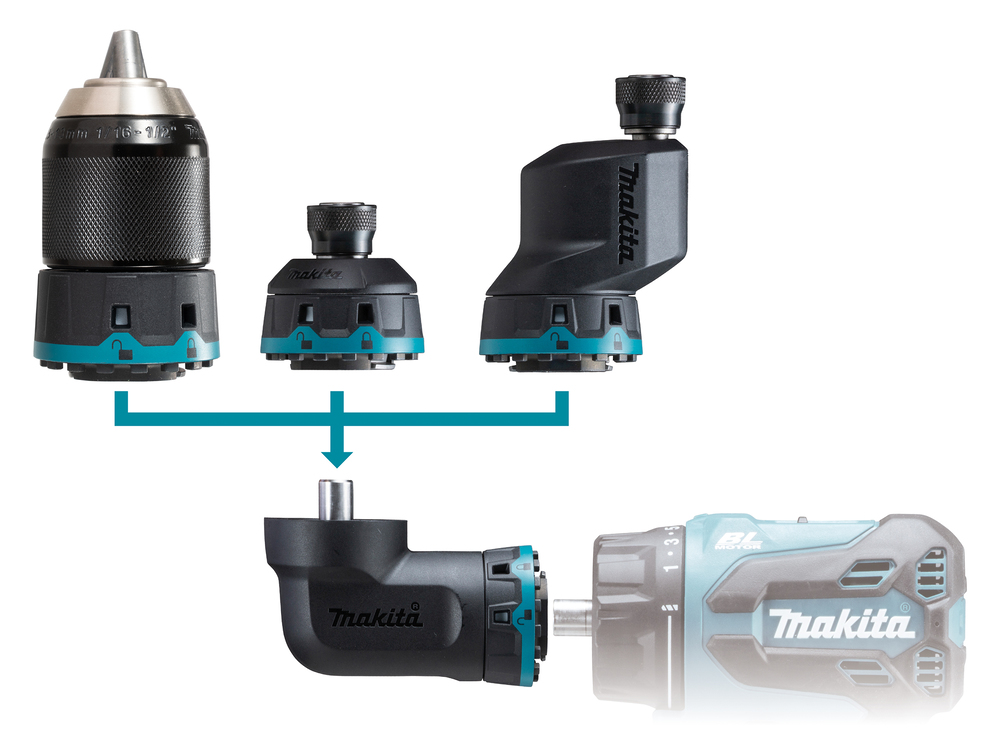

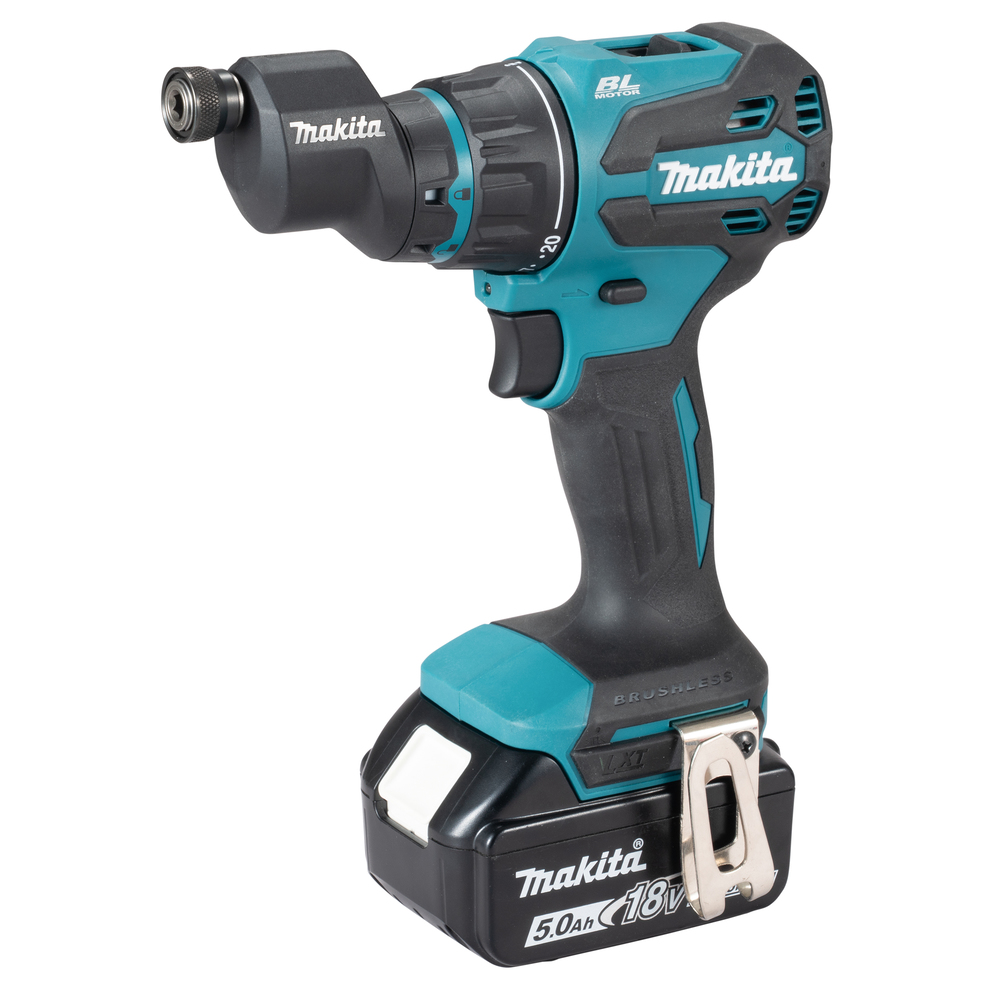

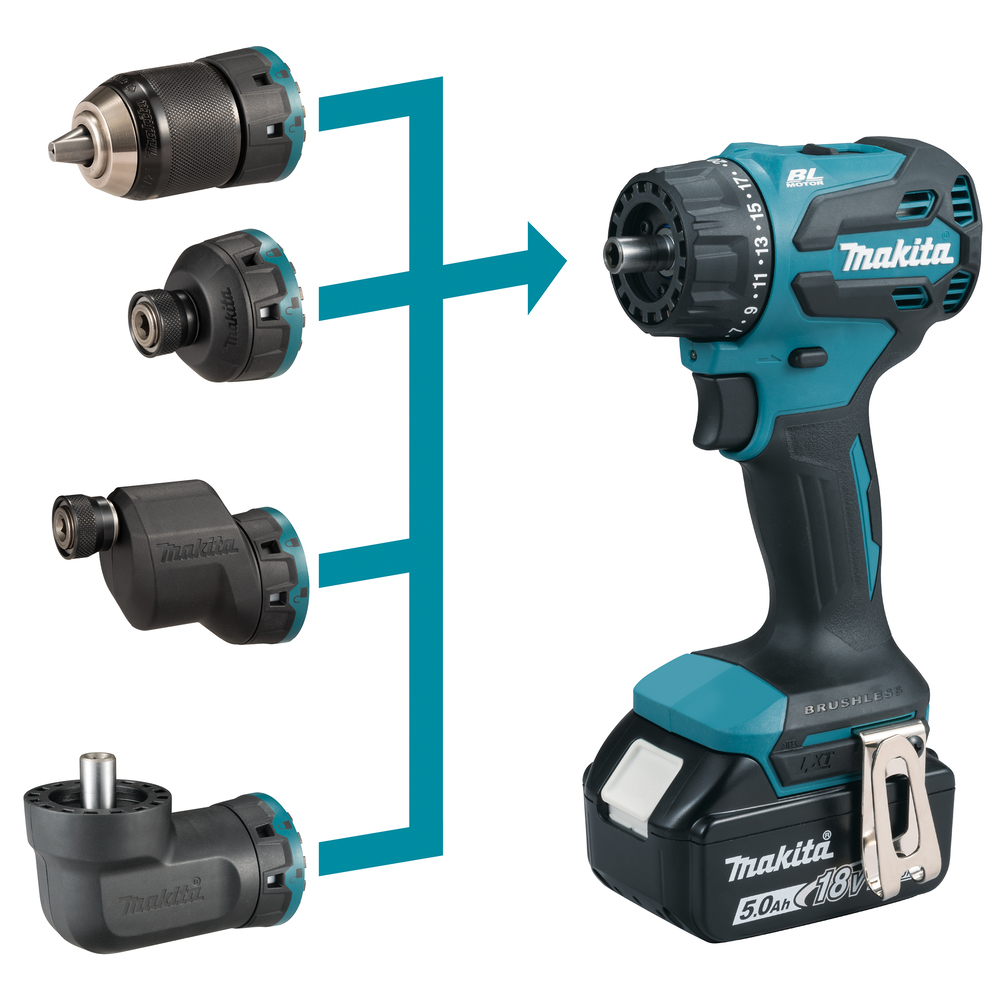

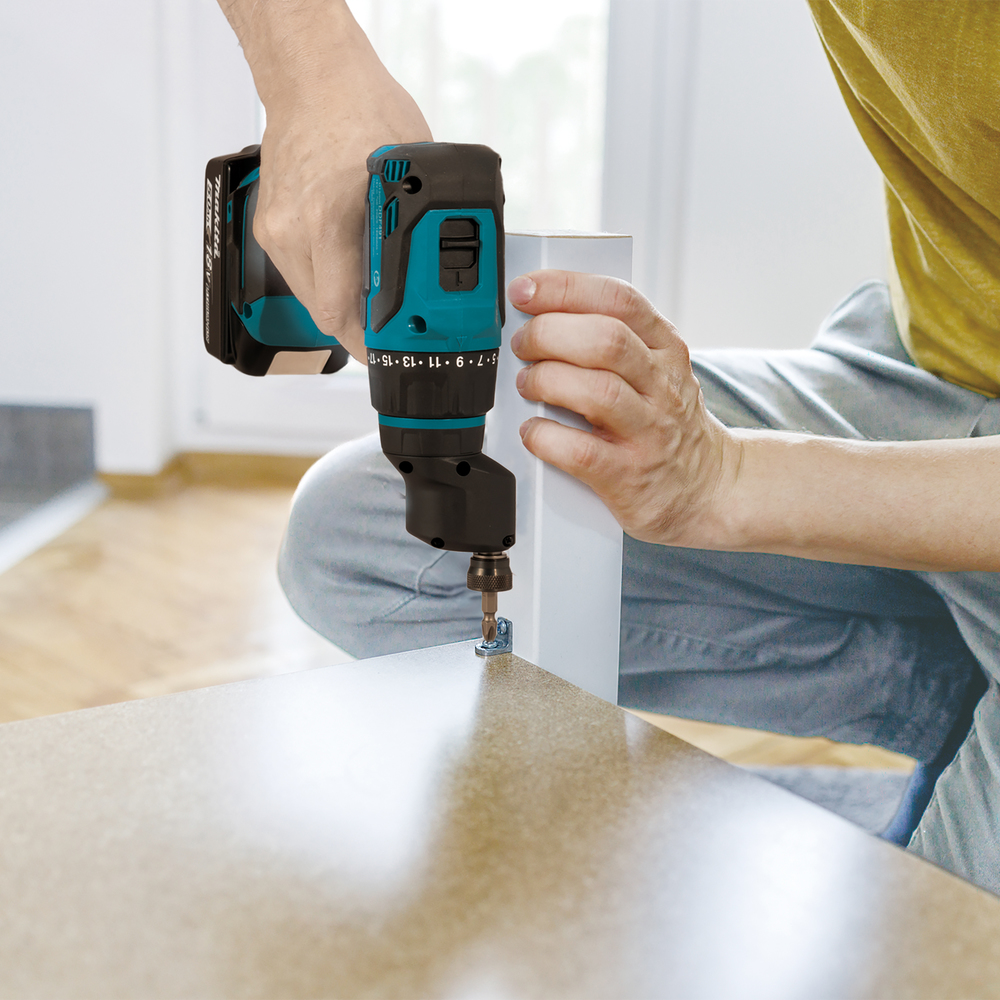

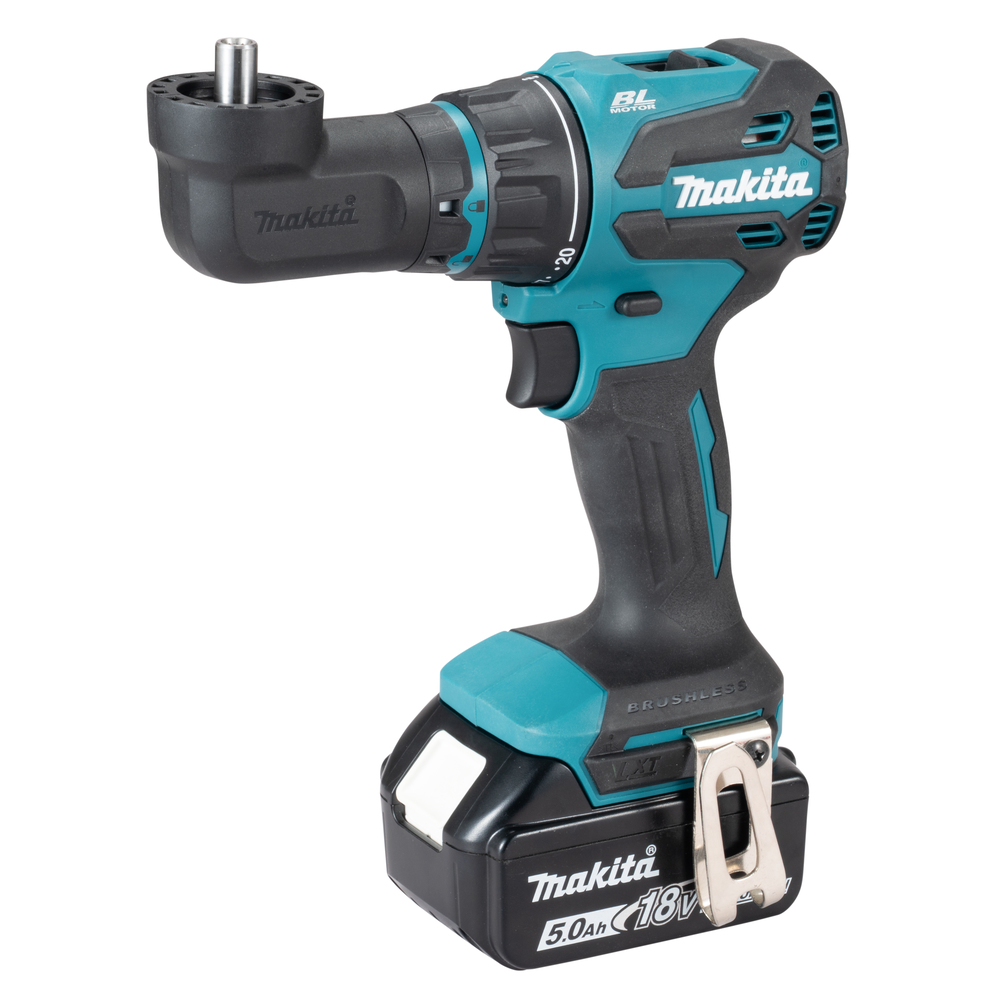

Includes four tool head attachments, Interchangeable without tool, providing added versatility in tool applications, The tool attachments are: Drill chuck, Hex bit, Offset, Angle attachments. Features: Mechanical 2 speed. Variable speed control by trigger, LED job light, Max fastening torque 65Nm.
  • Available version(s)
  • General
  • Technical info
  • Related Products
  • Parts diagram
  • Dust Extraction
  • Additional info
  • Support

Available version(s)

2 Available version
New product
DDF491RTJ 18V Drill Driver LXT®,
Barcode:
0197050021816
Display contents
DDF491 is drill driver powered by an 18V LXT Li-Ion battery.
New product
DDF491ZJ01 18V Drill Driver LXT®,
Barcode:
0197050021885
Display contents
DDF491 is drill driver powered by an 18V LXT Li-Ion battery.

General

LXT Litium-ion
Brushless Motor

User benefits

  • Keyless chuck for easy bit installation and removal
  • Reversing switch is conveniently located
  • Electric brake for maximum productivity and increased operator safety
  • Built-in LED light with pre-glow and afterglow functions illuminates the work area
  • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Battery protection system automatically shuts off power when the battery level is low

Technical info

Technical specifications

  • Nominal Battery Voltage
    18 V
  • Voltage LXT
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)
    Li-ion
  • Brushless Motor
  • No load speed
    0 - 500 / 0 - 1900 min⁻¹
  • Max. fastening torque Hard/Soft
    50 / 27 Nm
  • Max Torque
    65 Nm
  • Torque setting
    20
  • Driving Shank
    1/2" / 1/4 "
  • Drill Chuck Capacity
    1,5 - 13 mm
  • Max. Drilling Diameter in Wood
    38 mm
  • Max. Drilling Diameter in Steel
    13 mm
  • Drilling Capacity Wood (Auger Bit)
    38 mm
  • Drilling Capacity Wood (Self-feed bit)
    38 mm
  • Drilling Capacity Hole Saw
    51 mm
  • Sound Power Level (LWA)
    87 dB(A)
  • Sound Pressure Level (LpA)
    79 dB(A)
  • Noise Uncertainty (K Factor)
    3 dB(A)
  • Vibration Level, Drilling into metal
    2,0 m/s²
  • Vibration Uncertainty (K Factor), Drilling into metal
    1,5 m/s²
  • Product Dimensions (L x W x H):
    195 x 81 x 255 mm

    Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

    - CXT® machines with 2,0Ah batteries
    - LXT® machines with 6,0Ah batteries
    - XGT® machines with 4,0Ah batteries
  • Tool weight with battery
    1,2 - 2,1 kg
  • Product net weight
    0,8 kg

Barcode

Symbols:

Variable Speed

Brake

Reversing

Mechanical 2-Speed

Keyless chuck

Torque adjustment x20

Built-in Job Light
